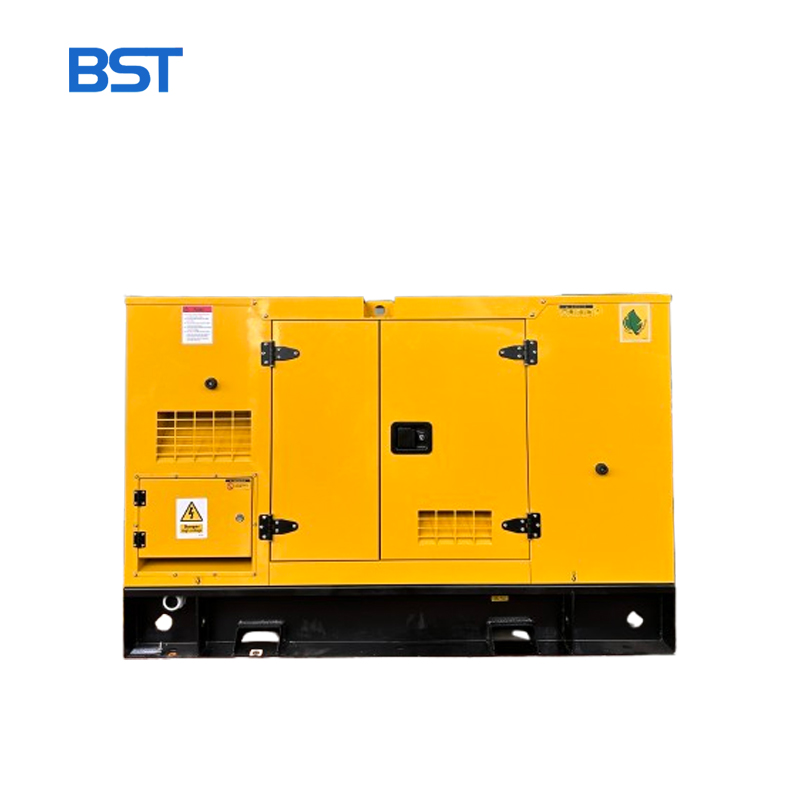

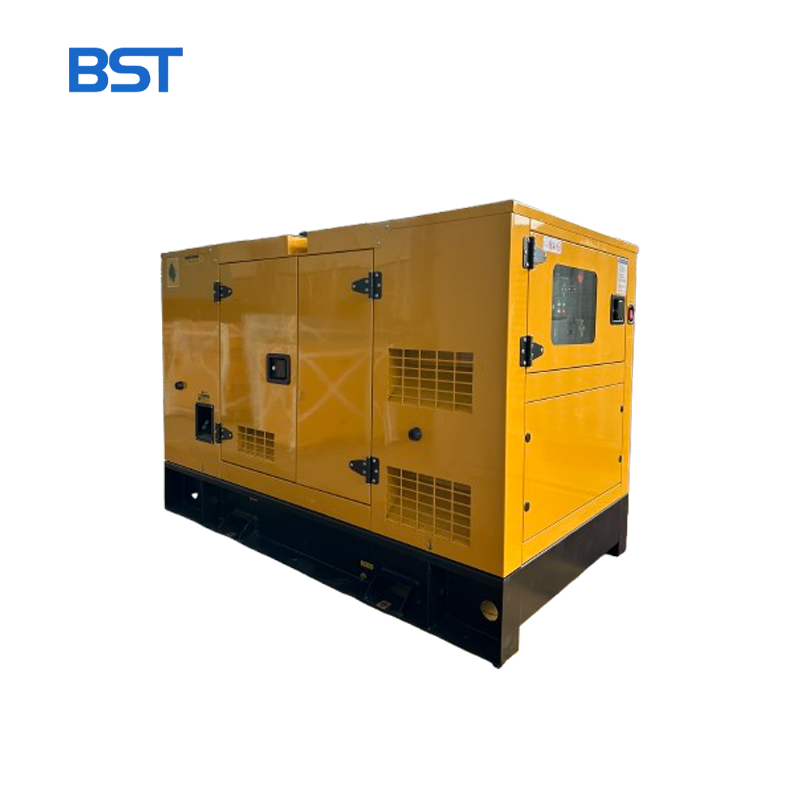

Top Sales 200KW Soundproof Enclosure Diesel Generator Set with Remote Control System
For the Diesel generators we have many models for customers' choice, you can choose famous motor brands below：
1.Multiple Models for Option:
Besten can not only supply the Diesel generator for Family or personal using from 10kva, 20kva, 50kva etc., but can also supply the heavy duty industrial Diesel generators like 800kw, 1000kw, 2000kw or bigger, which can solve the plant power supply problems. Just tell us your requirements we can offer you a solution plan.
2.Smart Control System
Adopt BST intelligent module. When the city power is cut off (or other units start signal), the unit will automatically start (1 to 8 times adjustable, first start success rate > 99%) after delay confirmation (0~30s adjustable), and supply power to the load after automatically confirming that the generator set is powered normally. After the city power is restored to normal, it will automatically cool down and stop (0-300s adjustable) after delay confirmation (0~30s adjustable). It also has basic protection functions, digitally displaying parameters such as voltage, current, frequency, running time, battery, voltage, speed, etc.
3. Safety Protection System
Leakage protection: With a highly safe NFB (non-fuse) leakage protection device. When it senses leakage, it will instantly cut off the circuit and alarm. The device also has an overload protection function.
High Temp. protection: With high temperature marks and alarms where with high temp, operations on the touch screen without the directly touch with the generator.
Automatic alarm: With a monitoring system and an emergency stop device. The alarm adopts light and sound , which is durable and reliable. The emergency shutdown circuit to completely eliminate the risk of electric shock that may occur during restarting.

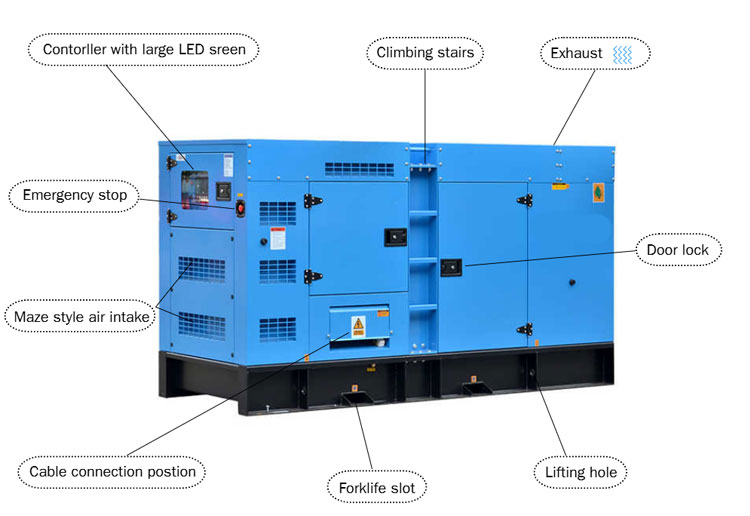

4.Special silent design
Good acoustic effect:
Excluding external noise, 7 meters outside the power station is
about 75 decibels.
Corrosion protection:Cold-rolled steel body with Zinc phosphate and polyester powder coating for a long-lasting new look;
Convenient transportation:
Skeleton structure, modular design;
High-strength soundproof box chassis;
Lifting lugs are set on the top of the soundproof box;
Parameters
| Genset Parameters | ||||||||
| Genset Model | Prime Power | Standby Power | Prime Current (A) | Standby Current (A) | Net Weight (KG) | Overall Dimensions L*W*H (m) | ||
| KW | KVA | KW | KVA | |||||
| BST-48GF | 48 | 60 | 53 | 66.25 | 86.4 | 95.4 | 967 | 1.54*0.97*1.36 |
| BST-64GF | 64 | 8 | 70 | 87.5 | 115.2 | 126 | 1207 | 1.54*0.97*1.36 |
| BST-120GF | 120 | 150 | 132 | 165 | 216 | 237.6 | 1602 | 2.5*1.12*1.47 |
| BST-160GF | 160 | 200 | 176 | 220 | 288 | 316.8 | 1695 | 2.8*0.9*1.69 |
| BST-200GF | 200 | 250 | 220 | 275 | 360 | 396 | 1895 | 2.87*0.9*1.69 |
| BST-280GF | 280 | 350 | 320 | 400 | 504 | 576 | 2775 | 3.4*1.13*2.02 |
| BST-320GF | 320 | 400 | 360 | 450 | 576 | 648 | 2925 | 3.4*1.13*2.06 |
| BST-364GF | 364 | 455 | 400 | 500 | 655.2 | 720 | 3450 | 3.76*1.13*2.06 |
| BST-400GF | 400 | 500 | 440 | 550 | 720 | 792 | 3570 | 3.76*1.13*2.06 |
| BST-480GF | 480 | 600 | 528 | 660 | 864 | 950.4 | 3975 | 3.76*1.54*2.13 |
| BST-520GF | 520 | 650 | 560 | 700 | 936 | 1008 | 4075 | 3.76*1.54*2.13 |
At Besten Machinery, our diesel generators are the result of advanced engineering and strict manufacturing standards. Utilizing cutting-edge CNC machining and precision assembly lines, each unit is crafted to deliver optimal performance and durability. Our commitment to engineering excellence ensures every generator meets international safety and emission standards.
